FIXED IND 1.5UH 2.02A 94MOHM SMD

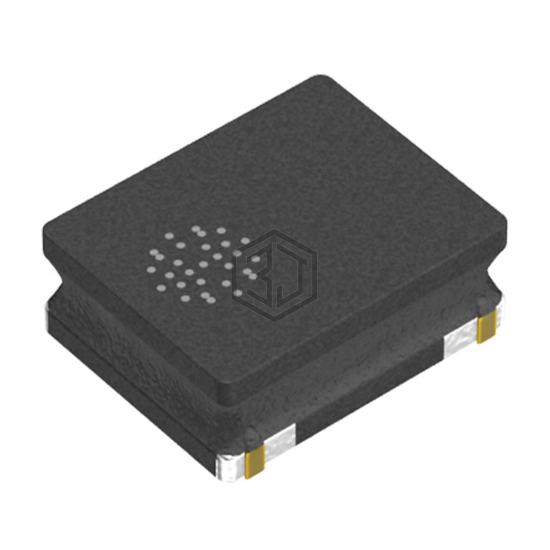

VLS252010HBX-1R5M-1 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 1.5UH 2.02A 94MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 1008 (2520 Metric), current rating (amps) 2.02 A.
In Stock: 2,893
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.02 A |
| Current - Saturation (Isat) | 2.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 94mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for VLS252010HBX-1R5M-1 and get a quote within 24 hours.
