FIXED IND 6.8UH 800MA 300MOHM SM

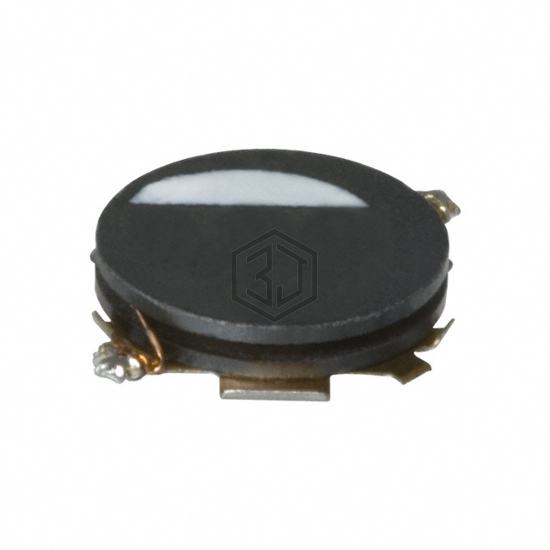

VLP5610T-6R8MR80 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 6.8UH 800MA 300MOHM SM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 800 mA, size / dimension 0.220" L x 0.197" W (5.60mm x 5.00mm).
In Stock: 5,152
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | 900mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 300mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.197" W (5.60mm x 5.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
