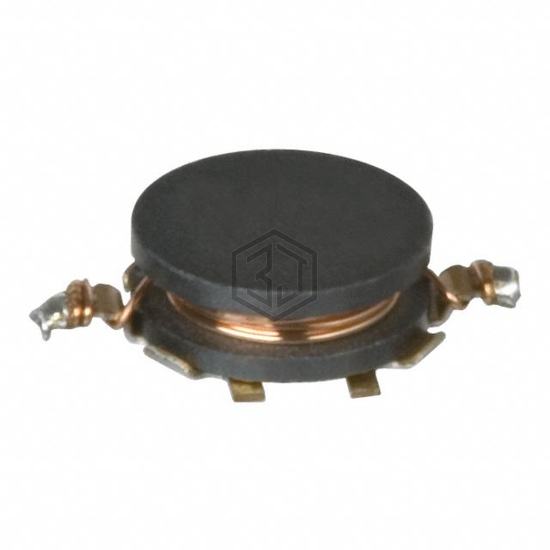

FIXED IND 2.5UH 1.1A 170MOHM SMD
VLP4612T-2R5M1R1 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 2.5UH 1.1A 170MOHM SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 1.1 A, size / dimension 0.181" L x 0.118" W (4.60mm x 3.00mm).
In Stock: 8,634
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 2.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.1 A |
| Current - Saturation (Isat) | 1.4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 170mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.181" L x 0.118" W (4.60mm x 3.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for VLP4612T-2R5M1R1 and get a quote within 24 hours.
