FIXED IND 220UH 1.3A 352MOHM SMD

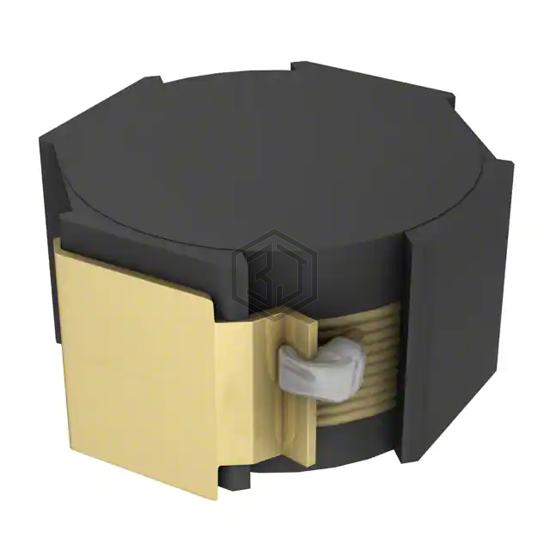

VLF12060T-221M1R3 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 220UH 1.3A 352MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 1.3 A.
In Stock: 490
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | 1.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 352mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.461" W (12.00mm x 11.70mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for VLF12060T-221M1R3 and get a quote within 24 hours.
