FIXED IND 2.7UH 1.82A 33MOHM SMD

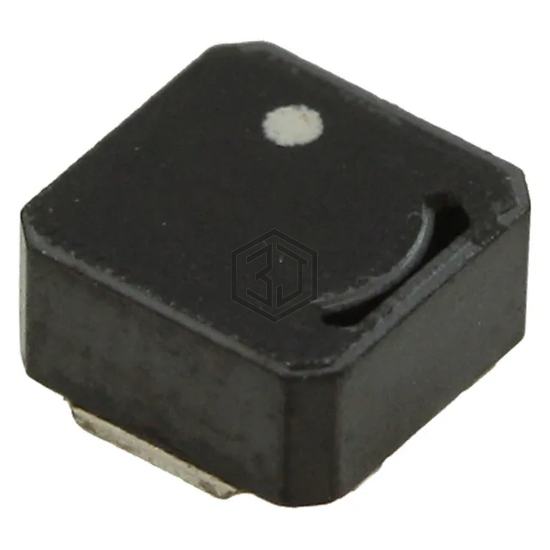

VLCF5028T-2R7N1R8-2 is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 2.7UH 1.82A 33MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 1.82 A.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.82 A |
| Current - Saturation (Isat) | 1.82A |
| Shielding | Shielded |
| DC Resistance (DCR) | 33mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for VLCF5028T-2R7N1R8-2 and get a quote within 24 hours.
