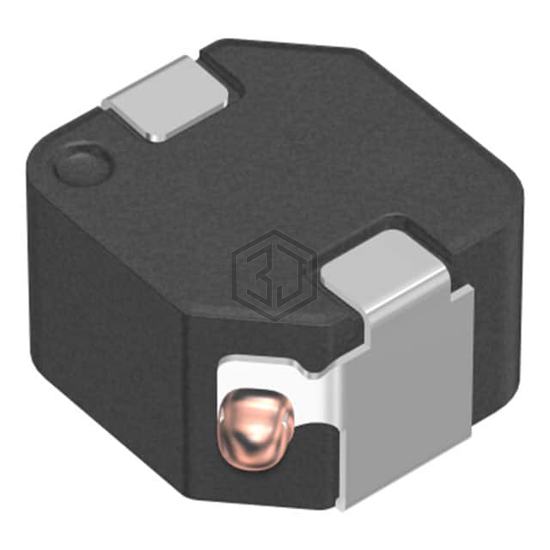

FIXED IND 1UH 4.4A 16.17MOHM SMD
SPM4030T-1R0M-HZ is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 1UH 4.4A 16.17MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 4.4 A.
In Stock: 1,168
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.4 A |
| Current - Saturation (Isat) | 4.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 16.17mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.161" L x 0.157" W (4.10mm x 4.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SPM4030T-1R0M-HZ and get a quote within 24 hours.
