FIXED IND 10UH 2.5A 36.4MOHM SMD

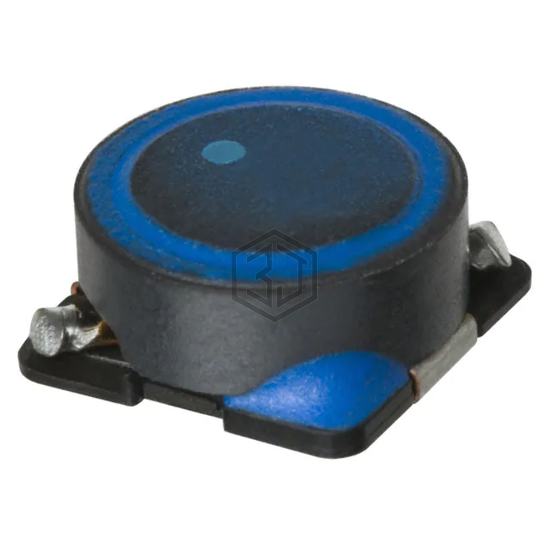

SLF10145T-100M2R5-H is a Fixed Inductors manufactured by TDK Corporation. FIXED IND 10UH 2.5A 36.4MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.5 A.
In Stock: 21,918
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.5 A |
| Current - Saturation (Isat) | 3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 36.4mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.398" L x 0.398" W (10.10mm x 10.10mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for SLF10145T-100M2R5-H and get a quote within 24 hours.
