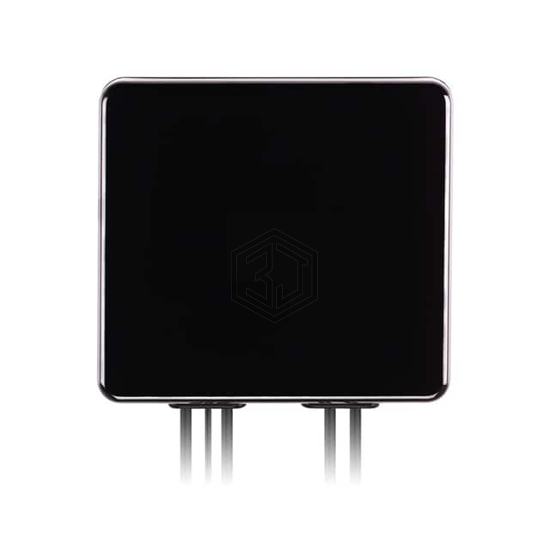

5IN1 GUARDIAN 3M:GNSS RG-174 :LT
MA952.A.LBIVW.001 is a RF Antennas manufactured by Taoglas Limited. 5IN1 GUARDIAN 3M:GNSS RG-174 :LT. Key specifications: mounting type Adhesive, termination SMA Male, ingress protection IP67, power - max 2 W.
In Stock: 37
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.925GHz |
| Antenna Type | Module |
| Number of Bands | 13 |
| VSWR | 2, 2, 2 |
| Return Loss | - |
| Gain | 1.42dBi, 1.28dBi, 3.56dBi, 3.24dBi, 3.55dBi, 3.21dBi, 3.21dBi, 3.11dBi, 3.06dBi, 3.84dBi |
| Power - Max | 2 W |
| Features | Cable - 3m |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.787" (20.00mm) |
| Applications | Beidou, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, Wi-Fi |
Submit your RFQ for MA952.A.LBIVW.001 and get a quote within 24 hours.
