RF ANT 700/850MHZ BAR PANEL 1M

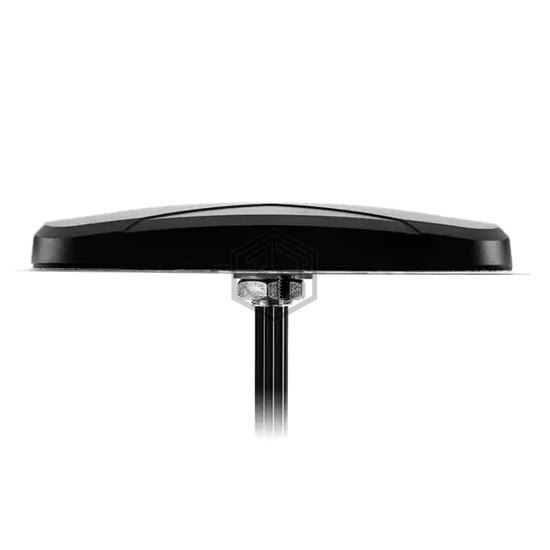

MA410.A.LBIJ.001 is a RF Antennas manufactured by Taoglas Limited. RF ANT 700/850MHZ BAR PANEL 1M. Key specifications: mounting type Panel Mount, termination SMA Male (4), ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.559GHz ~1.607GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz.
In Stock: 204
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz, 3.5GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.559GHz ~1.607GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz |
| Antenna Type | Flat Bar |
| Number of Bands | 11 |
| VSWR | 2, 3.5 |
| Return Loss | -10dB |
| Gain | 3.34dBi, 3.87dBi, 3.93dBi, 4.27dBi, 6.17dBi, 6.35dBi, 7.71dBi, 3.60dBi |
| Power - Max | - |
| Features | Cable - 1m, LNA, Filter |
| Termination | SMA Male (4) |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 1.219" (30.95mm) |
| Applications | Beidou, DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS |
Submit your RFQ for MA410.A.LBIJ.001 and get a quote within 24 hours.
