3 IN 1 GPS/GLONASS/GALILEO

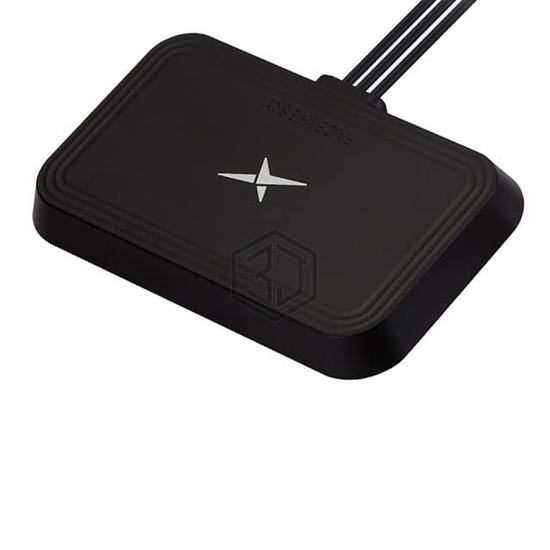

MA256.A.LBI.001 is a RF Antennas manufactured by Taoglas Limited. 3 IN 1 GPS/GLONASS/GALILEO. Key specifications: mounting type Adhesive, termination SMA Male, ingress protection IP67, power - max 2 W.
In Stock: 96
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.59GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz |
| Antenna Type | Module |
| Number of Bands | 9 |
| VSWR | 2, 3 |
| Return Loss | - |
| Gain | -0.1dBi, -3.9dBi, -0.1dBi, -0.6dBi, -0.4dBi, -3.1dBi, -3.1dBi, -2.3dBi, -0.6dBi, -0.2dBi, -1dBi, -1.8dBi |
| Power - Max | 2 W |
| Features | Cable - 2m, LNA, Filter |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.472" (12.00mm) |
| Applications | BEIDOU, GLONASS, GPS, LTE |
Submit your RFQ for MA256.A.LBI.001 and get a quote within 24 hours.
