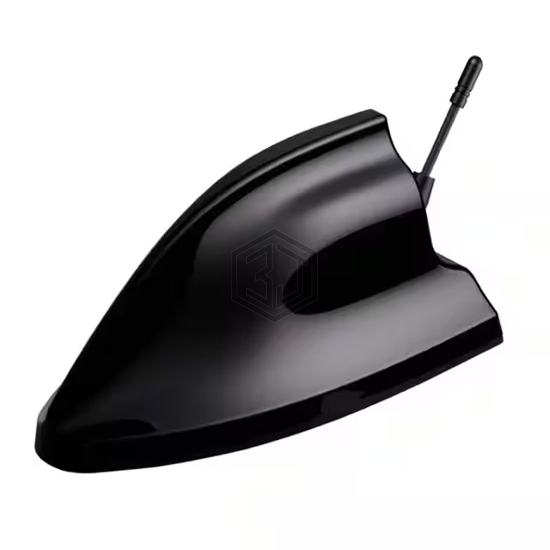

7IN1 RAPTORIII STAGGERED RG174:G
MA1280.K.LBICGRT.001 is a RF Antennas manufactured by Taoglas Limited. 7IN1 RAPTORIII STAGGERED RG174:G. Key specifications: mounting type Panel Mount, termination RP-SMA Male, SMA Male, UHF Male, ingress protection IP67, power - max 10 W.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.07MHz, 98MHz, 440MHz, 657.5MHz, 752MHz, 800MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.59GHz, 4.15GHz, 5.5GHz, 5.5375GHz |
| Frequency Range | 535kHz ~ 1.605MHz, 88MHz ~ 108MHz, 400MHz ~ 480MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 700MHz ~ 900MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz |
| Antenna Type | Dome |
| Number of Bands | 17 |
| VSWR | 2, 3.8 |
| Return Loss | -11.5dB |
| Gain | -3.7dBi, -1.9dBi, -0.3dBi, 1.6dBi, 1.6dBi, 2.8dBi, 3.3dBi, 3.7dBi, 3.6dBi, 0dBi, 1.8dBi, 0.6dBi, 0.9dBi, 0.4dBi |
| Power - Max | 10 W |
| Features | Cable - 5m, LNA, Filter |
| Termination | RP-SMA Male, SMA Male, UHF Male |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 3.661" (92.98mm) |
| Applications | 4G/5G, AM, FM, Beidou, Galileo, GLONASS, GPS, GNSS, Wi-Fi |
Submit your RFQ for MA1280.K.LBICGRT.001 and get a quote within 24 hours.
