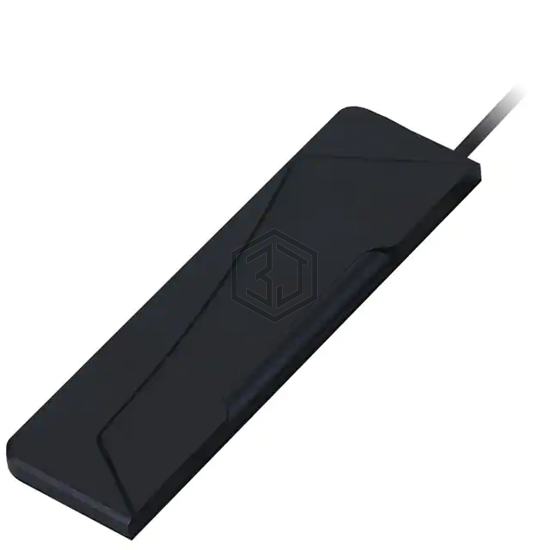

RF ANT 750MHZ/850MHZ FLAT BAR
GSA.8827R.A.101111 is a RF Antennas manufactured by Taoglas Limited. RF ANT 750MHZ/850MHZ FLAT BAR. Key specifications: mounting type Adhesive, termination SMA Male, ingress protection IP65, power - max 50 W.
In Stock: 138
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 750MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz |
| Frequency Range | 703MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz |
| Antenna Type | Flat Bar |
| Number of Bands | 8 |
| VSWR | - |
| Return Loss | - |
| Gain | 3.42dBi, 2.38dBi, 1.47dBi, 1.28dBi, 2.16dBi, 1.86dBi, 1.74dBi |
| Power - Max | 50 W |
| Features | Cable - 1m |
| Termination | SMA Male |
| Ingress Protection | IP65 |
| Mounting Type | Adhesive |
| Height (Max) | 0.303" (7.70mm) |
| Applications | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA, Wi-Fi |
Submit your RFQ for GSA.8827R.A.101111 and get a quote within 24 hours.
