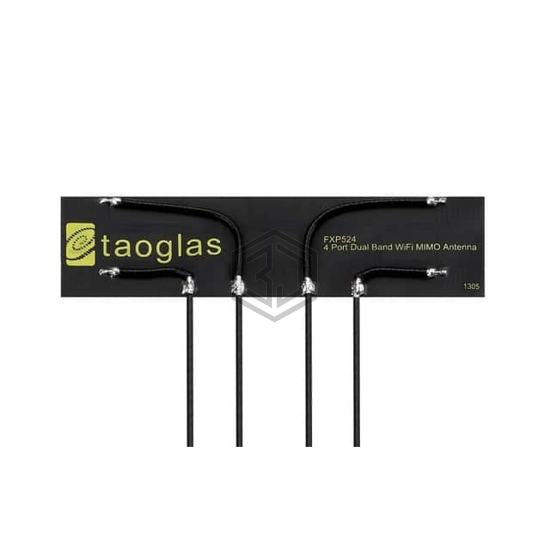

VENTI FXP524 2.4/5.8GHZ FLEX PCB
FXP524.D.07.C.001 is a RF Antennas manufactured by Taoglas Limited. VENTI FXP524 2.4/5.8GHZ FLEX PCB. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, power - max 2 W, frequency range 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz.
In Stock: 61
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.5GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 2 |
| VSWR | - |
| Return Loss | - |
| Gain | 5.01dBi, 6.3dBi, 2.49dBi, 6.28dBi, 2.01dBi, 6.36dBi, 3.55dBi, 6.33dBi |
| Power - Max | 2 W |
| Features | Cable - 100mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.004" (0.10mm) |
| Applications | WLAN |
Submit your RFQ for FXP524.D.07.C.001 and get a quote within 24 hours.
