Taiwan Semiconductor Corporation
15A, 60V, SCHOTTKY RECTIFIER

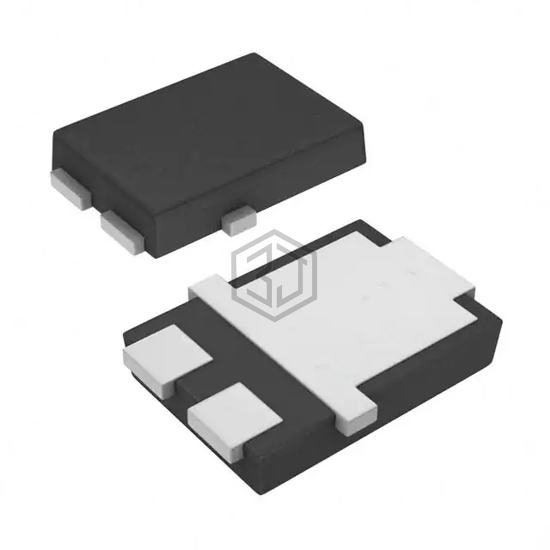

TSUP15M60SH S1G is a Diodes - Rectifiers - Single manufactured by Taiwan Semiconductor Corporation. 15A, 60V, SCHOTTKY RECTIFIER. Key specifications: mounting type Surface Mount, package / case TO-277, 3-PowerDFN.
In Stock: 1,628
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 15A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 640 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 450 µA @ 60 V |
| Capacitance @ Vr, F | 1046pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN |
| Supplier Device Package | SMPC4.6U |
| Operating Temperature - Junction | -55°C ~ 175°C |
Submit your RFQ for TSUP15M60SH S1G and get a quote within 24 hours.
