Taiwan Semiconductor Corporation
MOSFET P-CH 20V 4.5A 6TDFN

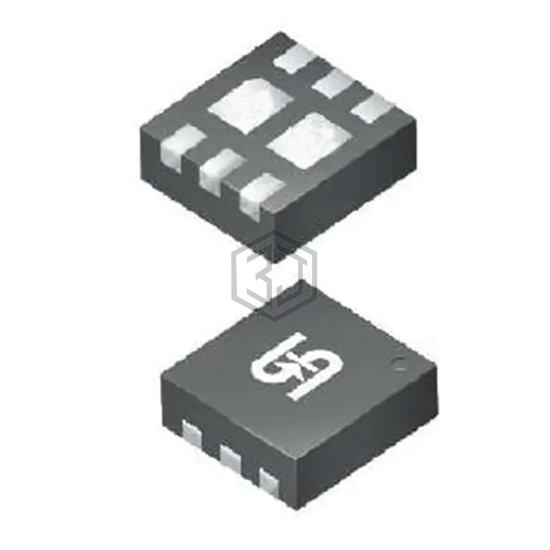

TSM301K12CQ RFG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET P-CH 20V 4.5A 6TDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad.
In Stock: 9,594
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 94mOhm @ 2.8A, 4.5V |
| Vgs(th) (Max) @ Id | 500mV @ 250µA (Min) |
| Gate Charge (Qg) (Max) @ Vgs | 4.5 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 5.2 pF @ 6 V |
| FET Feature | - |
| Power Dissipation (Max) | 6.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-TDFN (2x2) |
| Package / Case | 6-VDFN Exposed Pad |
Submit your RFQ for TSM301K12CQ RFG and get a quote within 24 hours.
