Taiwan Semiconductor Corporation

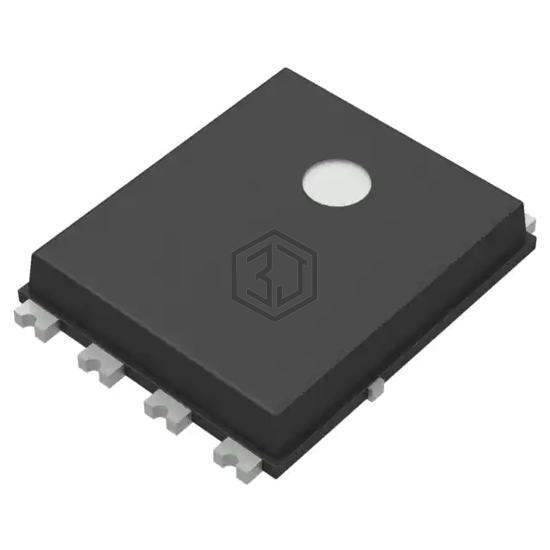

AUTOMOTIVE 40V MOSFET, 15M, DUAL
TQM150NB04DCR RLG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. AUTOMOTIVE 40V MOSFET, 15M, DUAL. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN, power - max 2.4W (Ta), 48W (Tc).
In Stock: 2,170
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta), 39A (Tc) |
| Rds On (Max) @ Id, Vgs | 15mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1135pF @ 20V |
| Power - Max | 2.4W (Ta), 48W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | 8-PDFNU (5x6) |
Submit your RFQ for TQM150NB04DCR RLG and get a quote within 24 hours.
