Taiwan Semiconductor Corporation
MOSFET N-CH 40V 12A/54A 8PDFNU

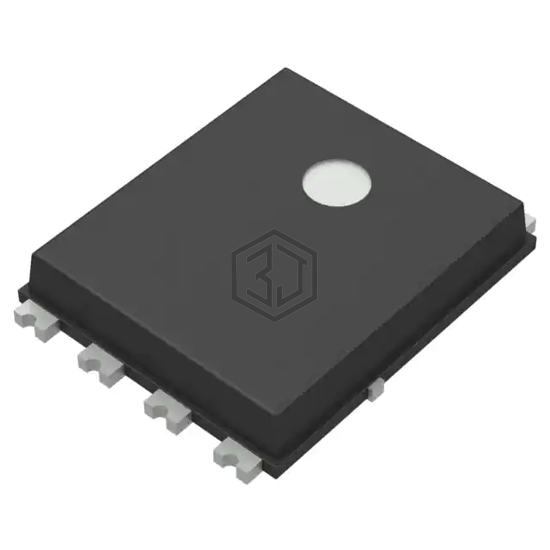

TQM110NB04CR RLG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CH 40V 12A/54A 8PDFNU. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.
In Stock: 4,738
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 54A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 7V, 10V |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1352 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta), 68W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 8-PDFNU (5x6) |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for TQM110NB04CR RLG and get a quote within 24 hours.
