Shenzhen Sunlord Electronics Co., Ltd.

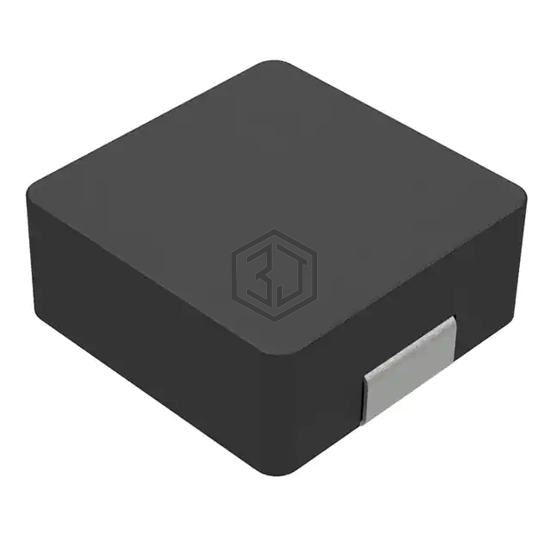

FIXED IND 560NH 16.5A 4.5MOHM SM
MWSA0603S-R56MT is a Fixed Inductors manufactured by Shenzhen Sunlord Electronics Co., Ltd.. FIXED IND 560NH 16.5A 4.5MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 16.5 A.
In Stock: 1,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Alloy Powder |
| Inductance | 560 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 16.5 A |
| Current - Saturation (Isat) | 18A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.276" L x 0.260" W (7.00mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for MWSA0603S-R56MT and get a quote within 24 hours.
