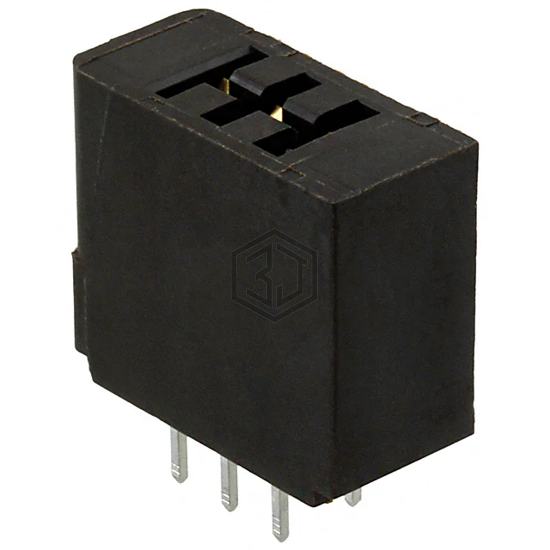

CONN TRANSIST TO-262 3POS GOLD
TCC03DKSN-S1713 is a Sockets for ICs, Transistors manufactured by Sullins Connector Solutions. CONN TRANSIST TO-262 3POS GOLD. Key specifications: mounting type Through Hole, operating temperature -50°C ~ 175°C, housing material Polyphenylene Sulfide (PPS), termination Solder.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Transistor, TO-262 |
| Number of Positions or Pins (Grid) | 3 (Rectangular) |
| Pitch - Mating | 0.150" (3.81mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | - |
| Termination | Solder |
| Pitch - Post | 0.150" (3.81mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Material - Post | Beryllium Copper |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Operating Temperature | -50°C ~ 175°C |
Submit your RFQ for TCC03DKSN-S1713 and get a quote within 24 hours.
