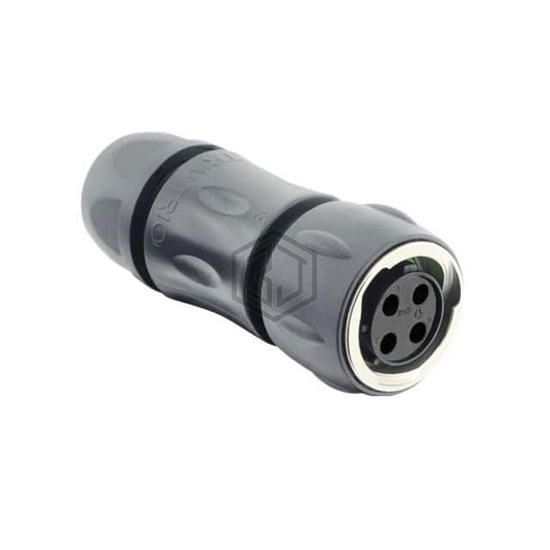

CONN PLUG FMALE 4POS GOLD SCREW
UTGX6JC124SSCR is a Circular Connectors manufactured by Souriau-Sunbank by Eaton. CONN PLUG FMALE 4POS GOLD SCREW. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 105°C, voltage rating 500V, color Black.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 4 (3 + PE) |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Screw |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Coupling Nut, UV Resistant |
| Shielding | Unshielded |
| Current Rating (Amps) | 16A |
| Voltage Rating | 500V |
| Cable Opening | 0.197" ~ 0.472" (5.00mm ~ 12.00mm) |
| Operating Temperature | -40°C ~ 105°C |
