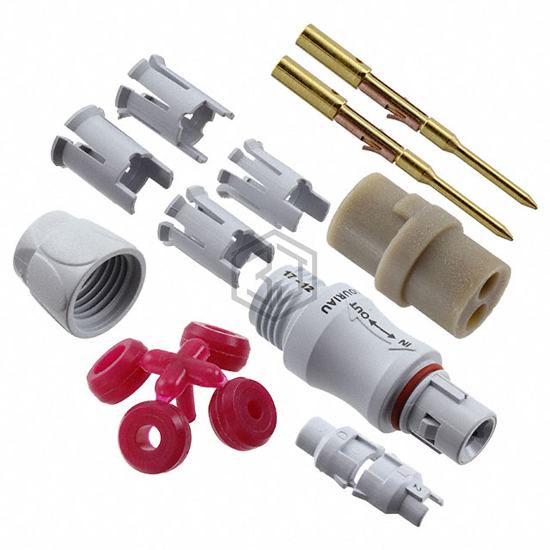

CONN PLUG MALE 2POS GOLD CRIMP
JMXFH1G02MCUDSU is a Circular Connectors manufactured by Souriau-Sunbank by Eaton. CONN PLUG MALE 2POS GOLD CRIMP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 125°C, voltage rating 300V, color Light Gray.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 2 |
| Shell Size - Insert | 1-2 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Crimp |
| Fastening Type | Push-Pull |
| Orientation | G |
| Primary Material | Plastic |
| Shell Material | Polyetherimide (PEI) |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Light Gray |
| Ingress Protection | IP50/IP68 - Dust Protected, Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 10A |
| Voltage Rating | 300V |
| Cable Opening | - |
| Operating Temperature | -40°C ~ 125°C |
