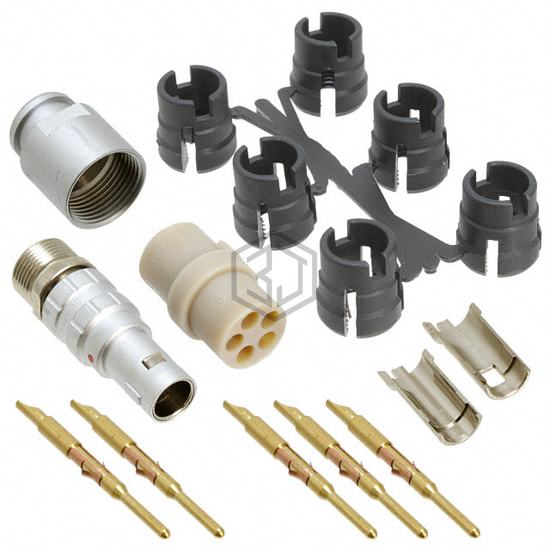

CONN PLUG MALE 5POS SOLDER CUP
JBXFD1G05MSSDSMR is a Circular Connectors manufactured by Souriau-Sunbank by Eaton. CONN PLUG MALE 5POS SOLDER CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 125°C, voltage rating 660V, color Silver.
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 5 |
| Shell Size - Insert | 1 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | G |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Chrome over Nickel |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Boot Adapter |
| Shielding | Shielded |
| Current Rating (Amps) | 9A |
| Voltage Rating | 660V |
| Cable Opening | - |
| Operating Temperature | -40°C ~ 125°C |
Submit your RFQ for JBXFD1G05MSSDSMR and get a quote within 24 hours.
