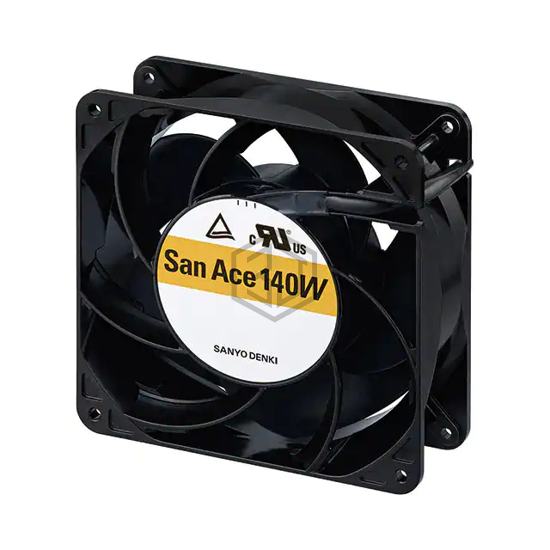

FAN 48VDC 140X38MM TACH/PWM
9WL1448P1A001 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. FAN 48VDC 140X38MM TACH/PWM. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 48VDC, size / dimension Square - 140mm L x 140mm H, termination 4 Wire Leads.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 140mm L x 140mm H |
| Width | 38.00mm |
| Air Flow | 282.0 CFM (7.90m³/min) |
| Static Pressure | 2.070 in H2O (515.6 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 68.0dB(A) |
| Power (Watts) | 44.16 W |
| RPM | 6900 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | cURus, TUV |
| Weight | 1.653 lb (750.0 g) |
Submit your RFQ for 9WL1448P1A001 and get a quote within 24 hours.
