FAN 60X25MM 24VDC IP68 RBLS

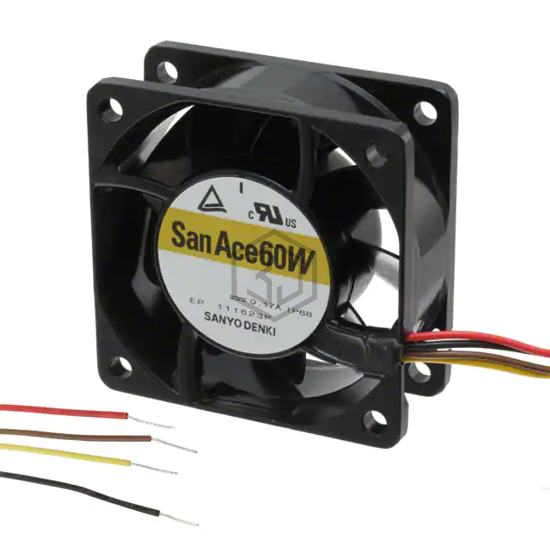

9WL0624P4H001 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. FAN 60X25MM 24VDC IP68 RBLS. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 24VDC, size / dimension Square - 60mm L x 60mm H, termination 4 Wire Leads.
In Stock: 76
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 60mm L x 60mm H |
| Width | 25.00mm |
| Air Flow | 27.5 CFM (0.770m³/min) |
| Static Pressure | 0.390 in H2O (97.1 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | PWM Control, Speed Sensor (Tach) |
| Noise | 36.0dB(A) |
| Power (Watts) | 1.92 W |
| RPM | 6150 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | CSA, TUV, UL |
| Weight | 0.243 lb (110.22 g) |
Submit your RFQ for 9WL0624P4H001 and get a quote within 24 hours.
