12VDC SPLASH PROOF BLOWER IP68

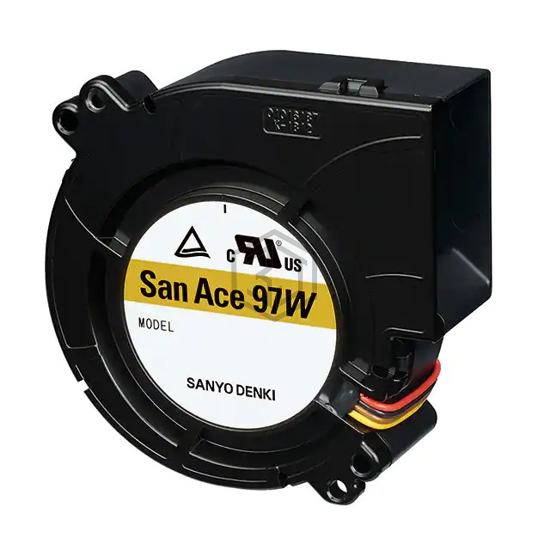

9W1BM12P2M001 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. 12VDC SPLASH PROOF BLOWER IP68. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 12VDC, size / dimension Rectangular/Rounded - 97.1mm L x 95mm H, termination 4 Wire Leads.
In Stock: 55
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Rectangular/Rounded - 97.1mm L x 95mm H |
| Width | 33.00mm |
| Air Flow | 32.8 CFM (0.918m³/min) |
| Static Pressure | 1.530 in H2O (381.1 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | PWM Control, Speed Sensor (Tach) |
| Noise | 55.0dB(A) |
| Power (Watts) | 10.8 W |
| RPM | 4100 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | cURus, TUV |
| Weight | 0.529 lb (240.00 g) |
Submit your RFQ for 9W1BM12P2M001 and get a quote within 24 hours.
