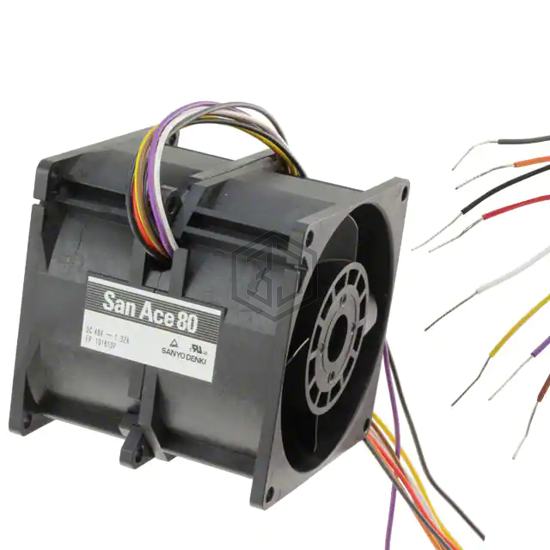

FAN 80X80MM 12VDC DUAL TACH,PWM
9CR0812P8S03 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. FAN 80X80MM 12VDC DUAL TACH,PWM. Key specifications: operating temperature 14 ~ 140°F (-10 ~ 60°C), voltage - rated 12VDC, size / dimension Square - 80mm L x 80mm H, termination 4 Wire Leads per Fan.
In Stock: 48
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 80.00mm |
| Air Flow | 160.0 CFM (4.48m³/min) |
| Static Pressure | 2.090 in H2O (520.0 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial (Dual) |
| Features | Counter-Rotating, PWM Control, Speed Sensor (Tach) |
| Noise | 71.0dB(A) |
| Power (Watts) | 66 W |
| RPM | 8000 Front, 5300 Rear |
| Termination | 4 Wire Leads per Fan |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Approval Agency | CSA, TUV, UL |
| Weight | 0.772 lb (350.17 g) |
