.100" POWERSTRIP/40 A SIGNAL/PO

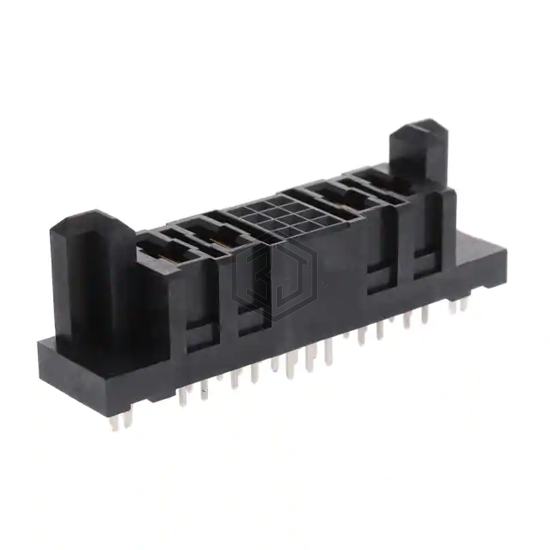

PESC-02-12-02-01-S-VT-LC is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. .100" POWERSTRIP/40 A SIGNAL/PO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, termination Solder, number of positions 16 (12 + 4 Power).
In Stock: 440
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 16 (12 + 4 Power) |
| Number of Positions Loaded | All |
| Pitch - Mating | - |
| Number of Rows | 4 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.497" (12.62mm) |
| Contact Length - Post | 0.097" (2.47mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Lock |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for PESC-02-12-02-01-S-VT-LC and get a quote within 24 hours.
