Renesas Electronics America Inc

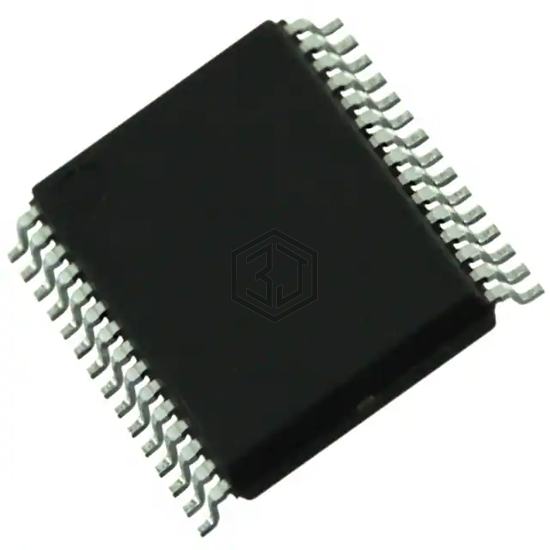

IC MCU 8BIT 24KB FLASH 30SSOP
UPD78F0502AMC-CAB-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 8BIT 24KB FLASH 30SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 5.5V, package / case 30-LSSOP (0.240", 6.10mm Width).
In Stock: 6,872
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | 78K/0 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | 3-Wire SIO, I²C, LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 24KB (24K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 30-LSSOP (0.240", 6.10mm Width) |
| Supplier Device Package | - |
UPD78F0502AMC-CAB-AX is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ATTINY461A-MUR | Microchip Technology | IC MCU 8BIT 4KB FLASH 32VQFN | 95% | View |
| PIC16F724T-I/ML | Microchip Technology | IC MCU 8BIT 7KB FLASH 44QFN | 94% | View |
| PIC16F887-I/PT | Microchip Technology | IC MCU 8BIT 14KB FLASH 44TQFP | 93% | View |
| PIC16F1509-E/SS | Microchip Technology | IC MCU 8BIT 14KB FLASH 20SSOP | 92% | View |
| ATMEGA329PA-MU | Microchip Technology | IC MCU 8BIT 32KB FLASH 64QFN | 88% | View |
| PIC16F874-20I/PT | Microchip Technology | IC MCU 8BIT 7KB FLASH 44TQFP | 84% | View |
Submit your RFQ for UPD78F0502AMC-CAB-AX and get a quote within 24 hours.
