Renesas Electronics America Inc

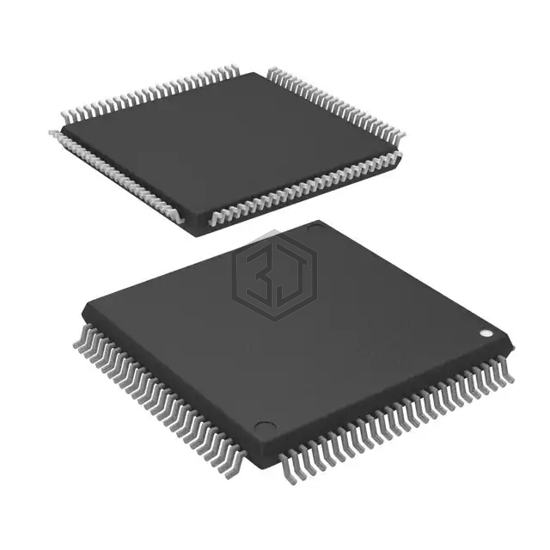

IC MCU 32BIT 2.5MB FLSH 100LFQFP
R5F564MGDDFP#V1 is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 2.5MB FLSH 100LFQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 3.6V, package / case 100-LQFP.
In Stock: 2,039
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | RXv2 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 78 |
| Program Memory Size | 2.5MB (2.5M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 552K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 22x12b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LFQFP (14x14) |
R5F564MGDDFP#V1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R7F7016843AFE-C#KA1 | Renesas Electronics America Inc | IC MCU | 98% | View |
| R7F7015604AFD-C#KA3 | Renesas Electronics America Inc | IC MCU | 98% | View |
| R7F7016873AFP-C#AA1 | Renesas Electronics America Inc | IC MCU 32BIT 1MB FLASH 80LFQFP | 96% | View |
| R5F56517BDLK#20 | Renesas Electronics America Inc | IC MCU 32BIT 768KB FLSH 145TFLGA | 95% | View |
| LPC1778FBD144K | NXP USA Inc. | IC MCU 32BIT 512KB FLASH 144LQFP | 94% | View |
| TM4C1299NCZADT3R | Texas Instruments | IC MCU 32BIT 1MB FLASH 212NFBGA | 91% | View |
Submit your RFQ for R5F564MGDDFP#V1 and get a quote within 24 hours.
