Renesas Electronics America Inc

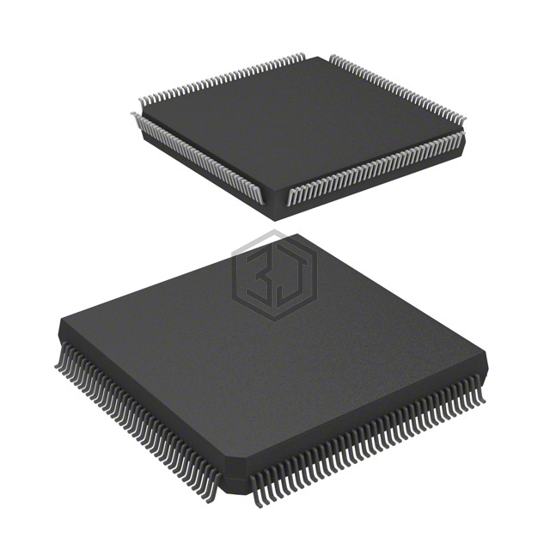

IC MCU 32BIT 2.5MB FLASH 144LQFP
R5F564MGCDFB#31 is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 2.5MB FLASH 144LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 3.6V, package / case 144-LQFP.
In Stock: 9,968
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Core Processor | RXv2 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 111 |
| Program Memory Size | 2.5MB (2.5M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 552K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 29x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LFQFP (20x20) |
R5F564MGCDFB#31 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R5F564MLHDLK#21 | Renesas Electronics America Inc | IC MCU 32BIT 4MB FLASH 145TFLGA | 100% | View |
| SPC5746BSK1AMKU2 | NXP USA Inc. | IC MCU 32BIT 3MB FLASH 176LQFP | 96% | View |
| R5F5651EHDFM#30 | Renesas Electronics America Inc | IC MCU 32BIT 2MB FLASH 64LFQFP | 87% | View |
| ATSAME53J18A-AF | Microchip Technology | IC MCU 32BIT 256KB FLASH 64TQFP | 83% | View |
| ATSAMD51J20A-AUT-EFP | Microchip Technology | IC MCU 32BIT 1MB FLASH 64TQFP | 83% | View |
| F280039CSPM | Texas Instruments | C2000 32-BIT MCU 120-MHZ 384-KB | 81% | View |
Submit your RFQ for R5F564MGCDFB#31 and get a quote within 24 hours.
