Renesas Electronics America Inc

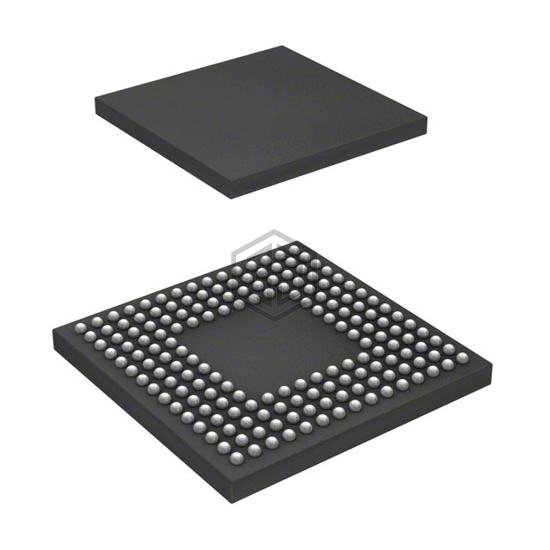

IC MCU 32BIT 768KB FLSH 176LFBGA
R5F563NACDBG#U0 is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 768KB FLSH 176LFBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 3.6V, package / case 176-LFBGA.
In Stock: 2,495
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | RX |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SPI, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 133 |
| Program Memory Size | 768KB (768K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 8x10b, 21x12b; D/A 2x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 176-LFBGA |
| Supplier Device Package | 176-LFBGA (13x13) |
R5F563NACDBG#U0 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R5F563NBCDBG#G0 | Renesas Electronics Corporation | RX63N MCU 1MB/128KB 176BGA 0.8MM | 100% | View |
| R5F563NBDDBG#G0 | Renesas Electronics Corporation | 32BIT MCU RX63N 1M/128K LFBGA176 | 100% | View |
| STM32F411VEH6TR | STMicroelectronics | IC MCU 32BIT 512KB FLSH 100UFBGA | 87% | View |
| DSPIC33CK32MP505-E/M4 | Microchip Technology | IC MCU 16BIT 32KB FLASH 48UQFN | 82% | View |
| STM32F410RBT6 | STMicroelectronics | IC MCU 32BIT 128KB FLASH 64LQFP | 80% | View |
| DSPIC33CK64MP102T-I/SS | Microchip Technology | IC MCU 16BIT 64KB FLASH 28SSOP | 76% | View |
Submit your RFQ for R5F563NACDBG#U0 and get a quote within 24 hours.
