Renesas Electronics America Inc

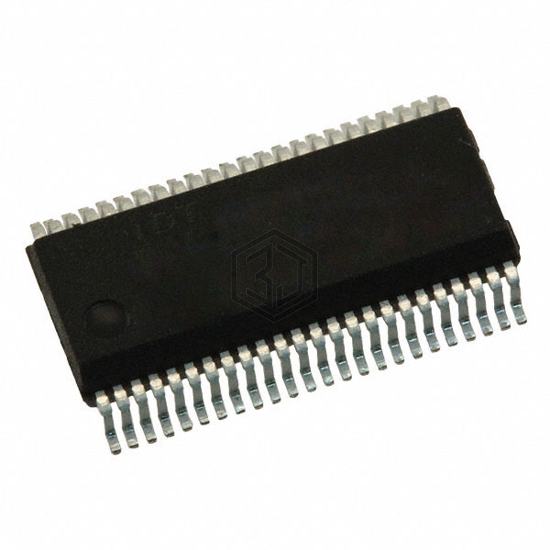

IC MUX/DEMUX DUAL 4X1 48QVSOP
QS4A215Q1G is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MUX/DEMUX DUAL 4X1 48QVSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 48-FSOP (0.154", 3.90mm Width), number of circuits 2.
In Stock: 2,302
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 17Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 6ns, 6ns |
| -3db Bandwidth | 700MHz |
| Charge Injection | 1.5pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -68dB @ 5MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-FSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 48-QVSOP |
QS4A215Q1G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| QS4A210QG8 | Renesas Electronics America Inc | IC SWITCH DUAL SP4T 16QSOP | 86% | View |
| TC7WBL3306CFK,L(CT | Toshiba Semiconductor and Storage | IC SWITCH SPST DUAL US8 | 60% | View |
| QS4A110QG | Renesas Electronics America Inc | IC SWITCH 24QSOP | 57% | View |
| TS5A2066DCUR | Texas Instruments | IC SWITCH SPST DUAL 8VSSOP | 55% | View |
| TS5A2066YZPR | Texas Instruments | IC SWITCH DUAL SPST 8DSBGA | 55% | View |
| SN74LVC2G66QDCURQ1 | Texas Instruments | IC SWITCH SPST DUAL 8VSSOP | 52% | View |
Submit your RFQ for QS4A215Q1G and get a quote within 24 hours.
