Renesas Electronics America Inc

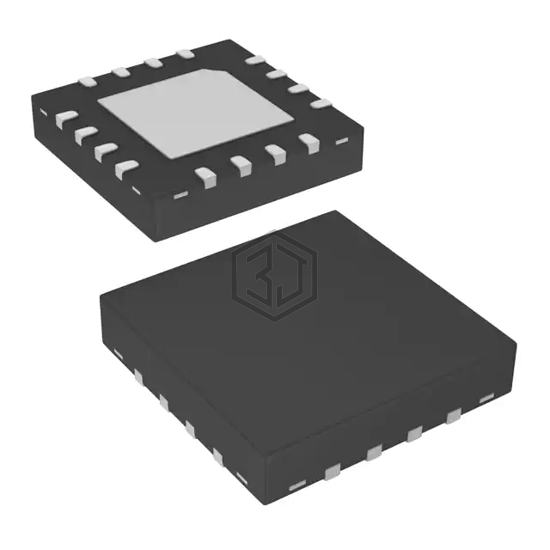

IC MUX/DEMUX DUAL 4X1 16TQFN
ISL84782IR-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MUX/DEMUX DUAL 4X1 16TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFQFN Exposed Pad, number of circuits 2.
In Stock: 9,370
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 120mOhm |
| Voltage - Supply, Single (V+) | 1.6V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 23ns |
| -3db Bandwidth | - |
| Charge Injection | -65pC |
| Channel Capacitance (CS(off), CD(off)) | 62pF, 218pF |
| Current - Leakage (IS(off)) (Max) | 4nA |
| Crosstalk | -100dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3x3) |
ISL84782IR-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4736EGC+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 12QFN | 75% | View |
| MAX4734EUB+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 4X1 10UMAX | 66% | View |
| MAX4784EUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER QUAD 2X1 16TSSOP | 66% | View |
| MAX4784EUE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER QUAD 2X1 16TSSOP | 66% | View |
| ADG812YRUZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 65% | View |
| ISL43210IHZ-T | Renesas Electronics America Inc | IC SWITCH SPDT SOT23-6 | 61% | View |
Submit your RFQ for ISL84782IR-T and get a quote within 24 hours.
