Renesas Electronics America Inc

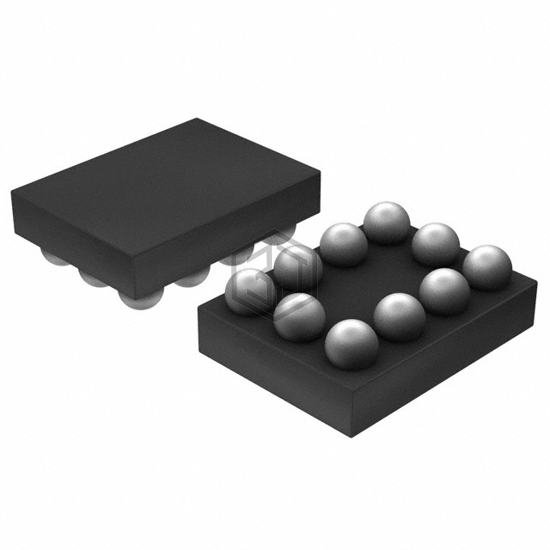

IC SWITCH DUAL SPDT 10WLCSP
ISL84684IIZ-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPDT 10WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-WFBGA, WLCSP, number of circuits 2.
In Stock: 3,660
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 140mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 35ns |
| -3db Bandwidth | - |
| Charge Injection | 260pC |
| Channel Capacitance (CS(off), CD(off)) | 140pF |
| Current - Leakage (IS(off)) (Max) | 900nA (Typ) |
| Crosstalk | -105dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFBGA, WLCSP |
| Supplier Device Package | 10-WLCSP (2x1.5) |
ISL84684IIZ-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4696EBT-T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SINGLE 6TSSOP | 63% | View |
| NX3L2267SGU,115 | NXP USA Inc. | IC ANALOG SWITCH SPDT 10XQFN | 60% | View |
| NLAS5157MUTCG | onsemi | IC SWITCH SPDT 6UDFN | 57% | View |
| NX3L4053PW-Q100J | NXP USA Inc. | IC ANALOG SWITCH SPDT 16TSSOP | 55% | View |
| NX3L1T3157GMZ | NXP USA Inc. | IC SWITCH SPDT 6XSON | 51% | View |
| XS3A4052PWJ | Nexperia USA Inc. | LOW-OHMIC DUAL-POLE QUAD-THROW A | 51% | View |
Submit your RFQ for ISL84684IIZ-T and get a quote within 24 hours.
