Renesas Electronics America Inc

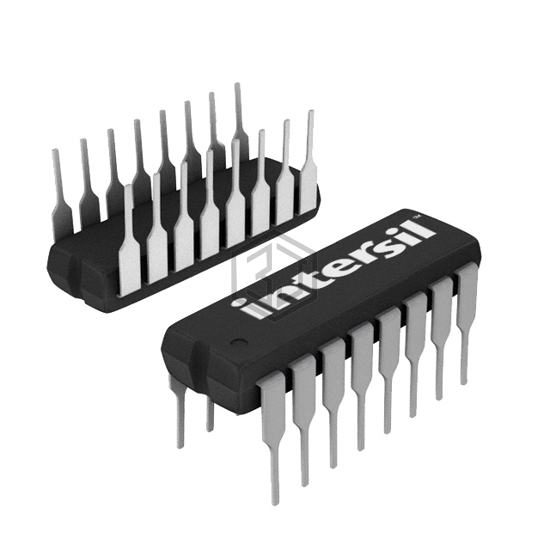

IC SWITCH 4PST 16CDIP
HI1-5047-2 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH 4PST 16CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 1.
In Stock: 4,507
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | 4PST - NO |
| Multiplexer/Demultiplexer Circuit | - |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 11pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -88dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP |
HI1-5047-2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI1-5046-8 | Harris Corporation | DPDT ANALOG SWITCH, 50 OHMS | 100% | View |
| HI1-5047A/883 | Harris Corporation | 4PDT ANALOG SWITCH, 25 OHMS | 100% | View |
| HI1-5048-8 | Harris Corporation | SPST ANALOG SWITCH, 25 OHMS | 89% | View |
| HI1-5050-2 | Harris Corporation | SPDT ANALOG SWITCH, 2 CHANNEL | 89% | View |
| HI1-5048/883 | Harris Corporation | SPST ANALOG SWITCH, 25 OHMS | 89% | View |
| HI1-5051-2 | Harris Corporation | SPDT ANALOG SWITCH, 2 CHANNEL, 2 | 89% | View |
Submit your RFQ for HI1-5047-2 and get a quote within 24 hours.
