Renesas Electronics America Inc

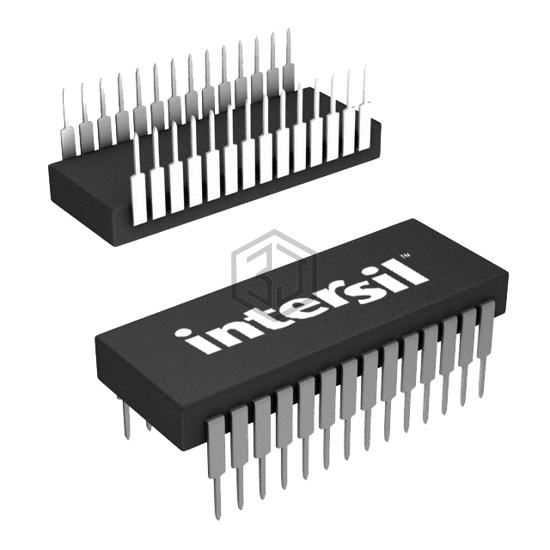

IC MULTIPLEXER DUAL 8X1 28CDIP
HI1-0507-2 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER DUAL 8X1 28CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 28-CDIP (0.600", 15.24mm), number of circuits 2.
In Stock: 6,939
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 30pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CerDip |
HI1-0507-2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI1-0507A-8 | Harris Corporation | 4-CHANNEL ANALOG MUX | 89% | View |
| HI1-5041/883X661 | Harris Corporation | SPST ANALOG SWITCH, 2 CHANNEL, 5 | 74% | View |
| HI1-5045/883 | Harris Corporation | DPST ANALOG SWITCH, 2 CHANNEL | 74% | View |
| HI1-5050-8 | Harris Corporation | SPDT ANALOG SWITCH, 2 CHANNEL | 63% | View |
| IH5016MDE | Harris Corporation | VIRTUAL GROUND ANALOG SWITCH | 58% | View |
| SW7511AQ | Analog Devices Inc. | QUAD SPST JFET SWITCH | 56% | View |
