Renesas Electronics America Inc

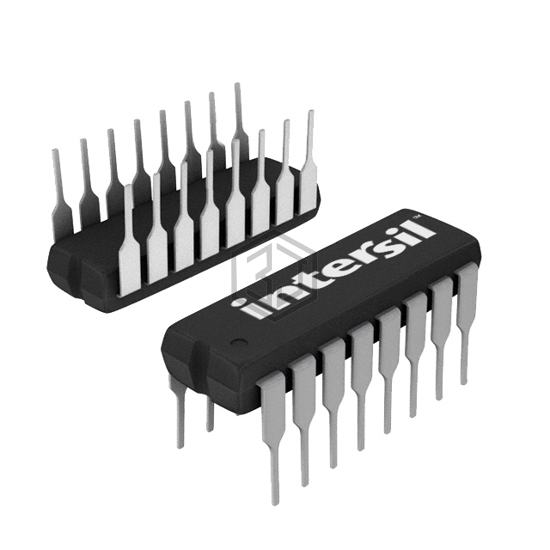

IC SWITCH QUAD SPST 16CDIP
HI1-0201HS-4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16CDIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 4.
In Stock: 3,255
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.5Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 50ns, 50ns |
| -3db Bandwidth | - |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -86dB @ 100kHz |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP |
HI1-0201HS-4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI1-0201HS-2 | Analog Devices Inc./Maxim Integrated | QUAD SPST CMOS ANALOG SWITCH | 100% | View |
| ADG201HSKNZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16DIP | 75% | View |
| 7705302EA | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST QUAD 16CDIP | 75% | View |
| DG412LEDJ-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-DIP | 64% | View |
| DG413LEDJ-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-DIP | 64% | View |
| DG411LEDJ-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-DIP | 64% | View |
Submit your RFQ for HI1-0201HS-4 and get a quote within 24 hours.
