Renesas Electronics America Inc

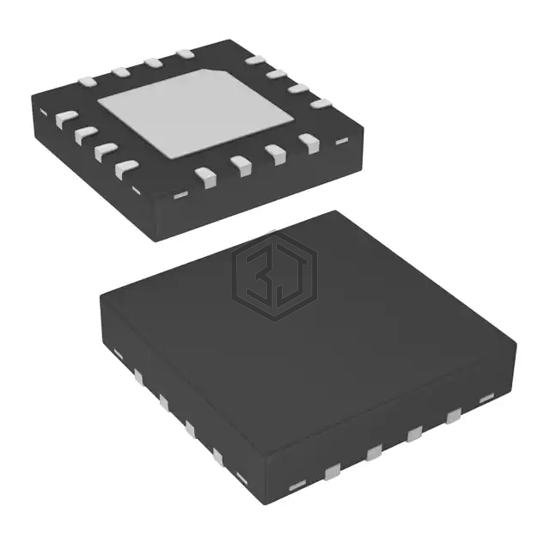

IC GATE DRVR HI/LOW SIDE 16QFN
EL7457CL-T13 is a PMIC - Gate Drivers manufactured by Renesas Electronics America Inc. IC GATE DRVR HI/LOW SIDE 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 18V, package / case 16-VQFN Exposed Pad.
In Stock: 1,788
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Independent |
| Number of Drivers | 4 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 13.5ns, 13ns |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
EL7457CL-T13 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IXDI602D2TR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8DFN | 84% | View |
| HIP2101IRZT | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 16QFN | 79% | View |
| MAX15013CASA+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR HALF-BRIDGE 8SOIC | 65% | View |
| MAX15013BASA+ | Analog Devices Inc./Maxim Integrated | IC GATE DRVR HALF-BRIDGE 8SOIC | 65% | View |
| MIC4101YM | Microchip Technology | IC GATE DRVR HALF-BRIDGE 8SOIC | 63% | View |
| 2ED020I12F2XUMA1 | Infineon Technologies | IC GATE DRVR HALF-BRIDG DSO36-58 | 60% | View |
Submit your RFQ for EL7457CL-T13 and get a quote within 24 hours.
