Renesas Electronics America Inc

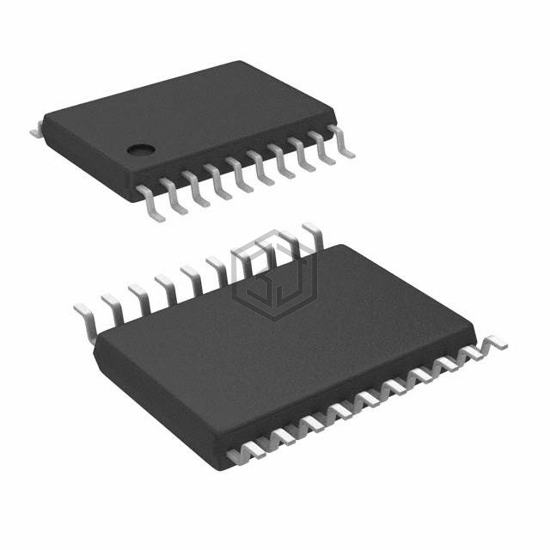

IC FANOUT BUFFER TSSOP
8543AG-09LF is a Clock/Timing - Clock Buffers, Drivers manufactured by Renesas Electronics America Inc. IC FANOUT BUFFER TSSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply 3.135V ~ 3.465V, package / case 20-TSSOP (0.173", 4.40mm Width).
In Stock: 1,757
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:4 |
| Differential - Input:Output | Yes/Yes |
| Input | LVDS, LVHSTL, SSTL, HCSL, LVPECL |
| Output | LVDS |
| Frequency - Max | 800 MHz |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
8543AG-09LF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD9513BCPZ | Analog Devices Inc. | IC CLK BUFFER 1:3 800MHZ 32LFCSP | 100% | View |
| SN0305042RTHR | Texas Instruments | IC CLK BUFFER 1:3 800MHZ 24VQFN | 99% | View |
| SY100E310LJY-TR | Microchip Technology | IC CLK BUFFER 2:8 800MHZ 28PLCC | 99% | View |
| CDCM1802RGTR | Texas Instruments | IC CLK BUFFER 1:2 800MHZ 16QFN | 99% | View |
| CDCM1802RGTT | Texas Instruments | IC CLK BUFFER 1:2 800MHZ 16QFN | 99% | View |
| CDCLVD1212RHAT | Texas Instruments | IC CLK BUFFER 2:12 800MHZ 40VQFN | 96% | View |
Submit your RFQ for 8543AG-09LF and get a quote within 24 hours.
