Renesas Electronics America Inc
MOSFET P-CH 30V 100MA SC75-3 USM

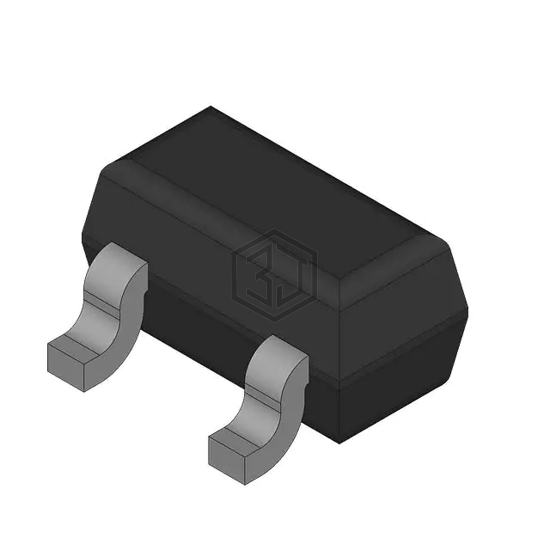

2SJ243-T1-A is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET P-CH 30V 100MA SC75-3 USM. Key specifications: mounting type Surface Mount, package / case SC-75, SOT-416.
In Stock: 1,618
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 25Ohm @ 10mA, 4V |
| Vgs(th) (Max) @ Id | 2.3V @ 10µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 16 pF @ 5 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-75-3, USM |
| Package / Case | SC-75, SOT-416 |
Submit your RFQ for 2SJ243-T1-A and get a quote within 24 hours.
