LED RED/YLW-GRN CLEAR 1205 SMD

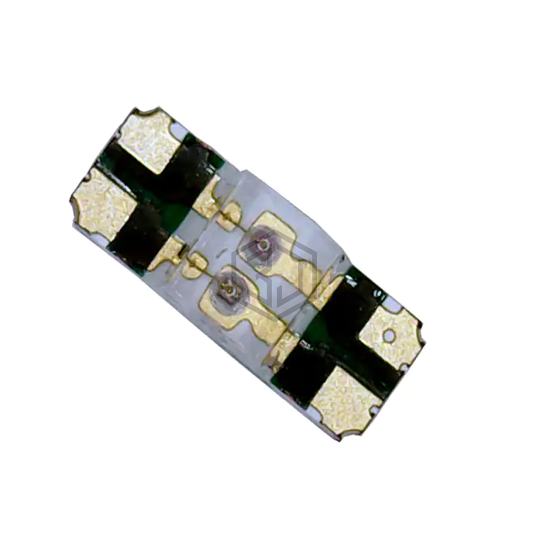

QBLP655R-RAG is a LED Indication - Discrete manufactured by QT Brightek (QTB). LED RED/YLW-GRN CLEAR 1205 SMD. Key specifications: mounting type Surface Mount, Bottom Entry, voltage - forward (vf) (typ) 2V Red, 2V Yellow-Green, package / case 4-SMD, No Lead, color Red, Yellow-Green.
In Stock: 11,841
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Yellow-Green |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 90mcd Red, 33mcd Yellow-Green |
| Lens Style | Square with Flat Top |
| Lens Size | 1.20mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2V Yellow-Green |
| Current - Test | 20mA Red, 20mA Yellow-Green |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 623nm Red, 571nm Yellow-Green |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 1205 |
| Size / Dimension | 3.20mm L x 1.20mm W |
| Height (Max) | 1.20mm |
Submit your RFQ for QBLP655R-RAG and get a quote within 24 hours.
