LED RGB CLEAR 1205 SMD

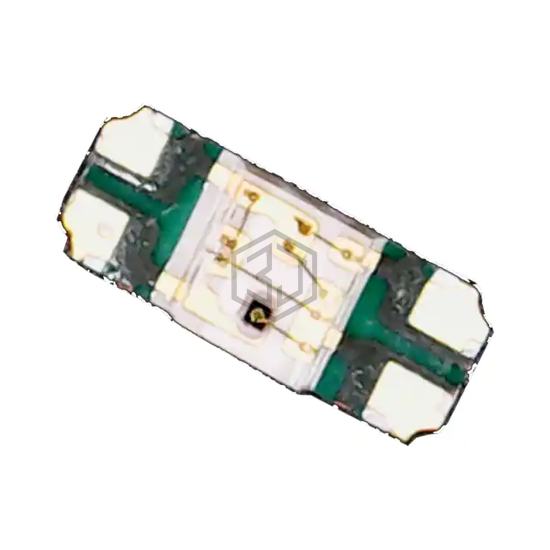

QBLP655-RGB is a LED Indication - Discrete manufactured by QT Brightek (QTB). LED RGB CLEAR 1205 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3.1V Green, 3.1V Blue, package / case 4-SMD, No Lead, color Red, Green, Blue (RGB).
In Stock: 2,342
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 90mcd Red, 450mcd Green, 95mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 1.20mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.1V Green, 3.1V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 623nm Red, 520nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 1205 |
| Size / Dimension | 3.20mm L x 1.20mm W |
| Height (Max) | 1.20mm |
