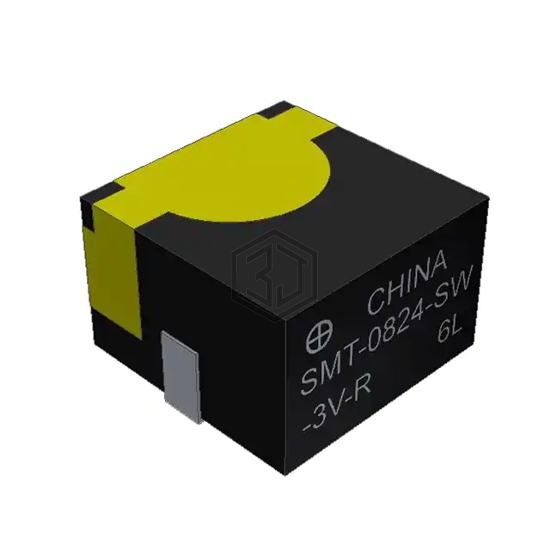

BUZZER MAGNETIC 3.6V 8.5X8.5 SMD
SMT-0824-TW-3V-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER MAGNETIC 3.6V 8.5X8.5 SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 3.6 V, current - supply 70mA.
In Stock: 136
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 3.6 V |
| Voltage Range | 2 ~ 5V |
| Frequency | 2.4kHz |
| Technology | Electromechanical/Magnetic |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 3.6V, 10cm |
| Current - Supply | 70mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
Submit your RFQ for SMT-0824-TW-3V-R and get a quote within 24 hours.
