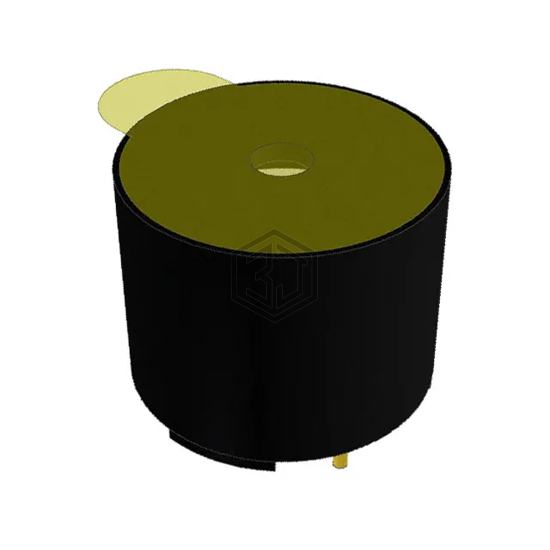

BUZZER MAGNETIC 5V 12MM TH
AT-1220-TWT-5V-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER MAGNETIC 5V 12MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 60°C, voltage - rated 5 V, current - supply 45mA.
In Stock: 2,263
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 3 ~ 8V |
| Frequency | 2.048kHz |
| Technology | Electromechanical/Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 5V, 10cm |
| Current - Supply | 45mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.472" Dia (12.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
