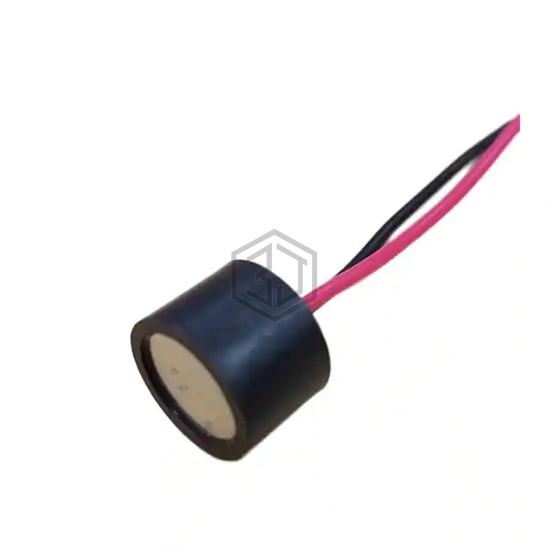

INDICATOR 12VDC 85DB 2800HZ IP67
AI-2628-TF-LW100-WP-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. INDICATOR 12VDC 85DB 2800HZ IP67. Key specifications: mounting type Panel Mount, Flange, operating temperature -40°C ~ 95°C, voltage - rated 12 V, current - supply 35mA.
In Stock: 980
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 6 ~ 14V |
| Frequency | 1.8kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 12V, 30cm |
| Current - Supply | 35mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 95°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.008" Dia (25.60mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
