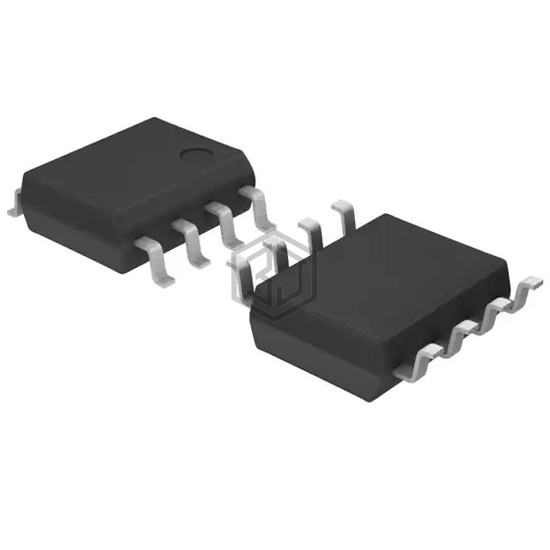

30V COMPLEMENTARY ENHANCEMENT MO
PJL9602_R2_00001 is a Transistors - FETs, MOSFETs - Arrays manufactured by Panjit International Inc.. 30V COMPLEMENTARY ENHANCEMENT MO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), power - max 1.7W (Ta).
In Stock: 2,470
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel Complementary |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 6.1A (Ta), 6A (Ta) |
| Rds On (Max) @ Id, Vgs | 28mOhm @ 6A, 10V, 30mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA, 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.8nC @ 10V, 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 343pF @ 15V, 870pF @ 15V |
| Power - Max | 1.7W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
Submit your RFQ for PJL9602_R2_00001 and get a quote within 24 hours.
