Panasonic Electronic Components
FIXED IND 3.3UH 2.8A 103MOHM SMD

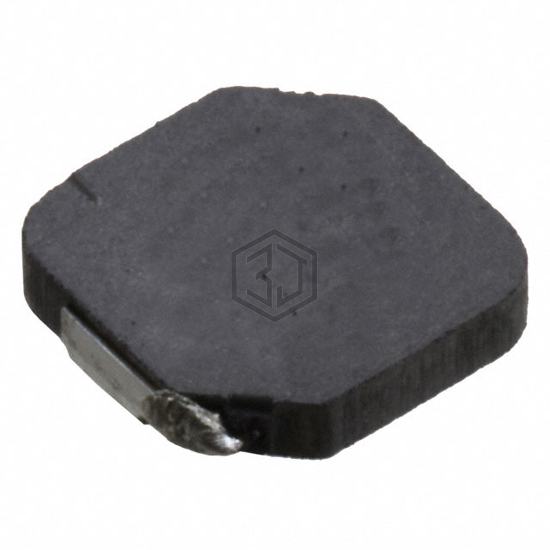

ETQ-P1W3R3WFP is a Fixed Inductors manufactured by Panasonic Electronic Components. FIXED IND 3.3UH 2.8A 103MOHM SMD. Key specifications: mounting type Surface Mount, package / case 2-SMD, J-Lead, current rating (amps) 2.8 A, size / dimension 0.216" L x 0.204" W (5.49mm x 5.18mm).
In Stock: 5,977
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | - |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.8 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 103mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.216" L x 0.204" W (5.49mm x 5.18mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for ETQ-P1W3R3WFP and get a quote within 24 hours.
