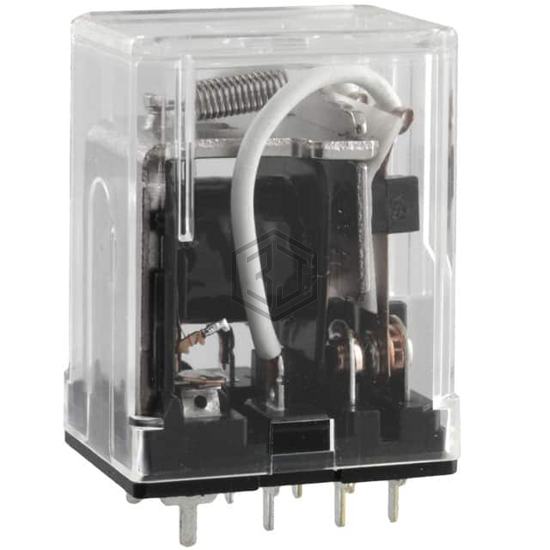

RELAY GEN PURPOSE DPDT 10A 240V
HL2-HTM-AC240V-F is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE DPDT 10A 240V. Key specifications: mounting type Chassis Mount, operating temperature -50°C ~ 70°C, contact material Silver Tin Oxide (AgSnO), termination style Quick Connect - 0.187" (4.7mm).
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Mounting Type | Chassis Mount |
| Coil Voltage | 240VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 125VAC - Nom |
| Coil Current | 5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 192 VAC |
| Must Release Voltage | 72 VAC |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Operating Temperature | -50°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for HL2-HTM-AC240V-F and get a quote within 24 hours.
