RELAY GEN PURPOSE SPST 120A 6V

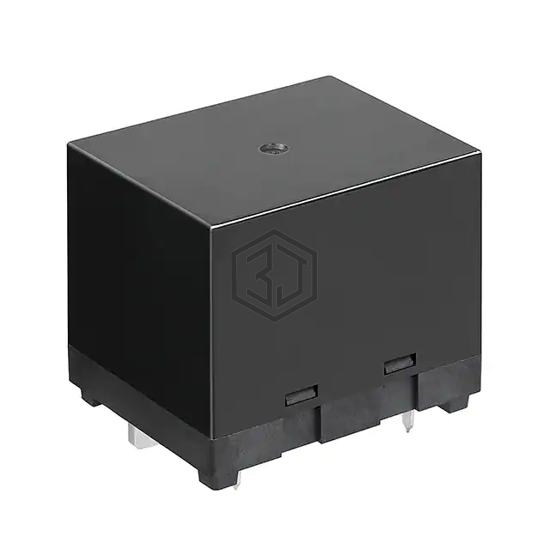

HE1AN-W-DC6V-Y7 is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE SPST 120A 6V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 55°C, contact material Silver Nickel (AgNi), termination style PC Pin.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 6VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 120 A |
| Switching Voltage | 480VAC - Max |
| Coil Current | 417 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 4.5 VDC |
| Must Release Voltage | 0.3 VDC |
| Operate Time | 30 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |
