DC DC CONVERTER 3.3V 2.31W

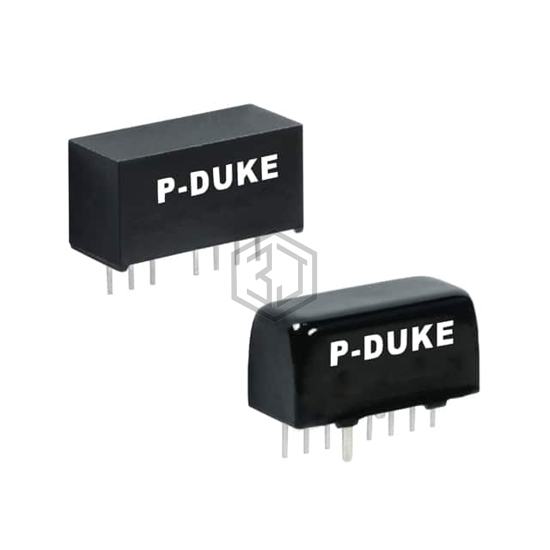

LDL03-24S3P3M is a DC DC Converters manufactured by P-DUKE Technology, Inc.. DC DC CONVERTER 3.3V 2.31W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 12-SIP Module, 11 Leads, current - output (max) 700mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 700mA |
| Power (Watts) | 2.31 W |
| Voltage - Isolation | 1.6 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 77% |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP Module, 11 Leads |
| Size / Dimension | 0.83" L x 0.38" W x 0.44" H (21.0mm x 9.6mm x 11.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for LDL03-24S3P3M and get a quote within 24 hours.
